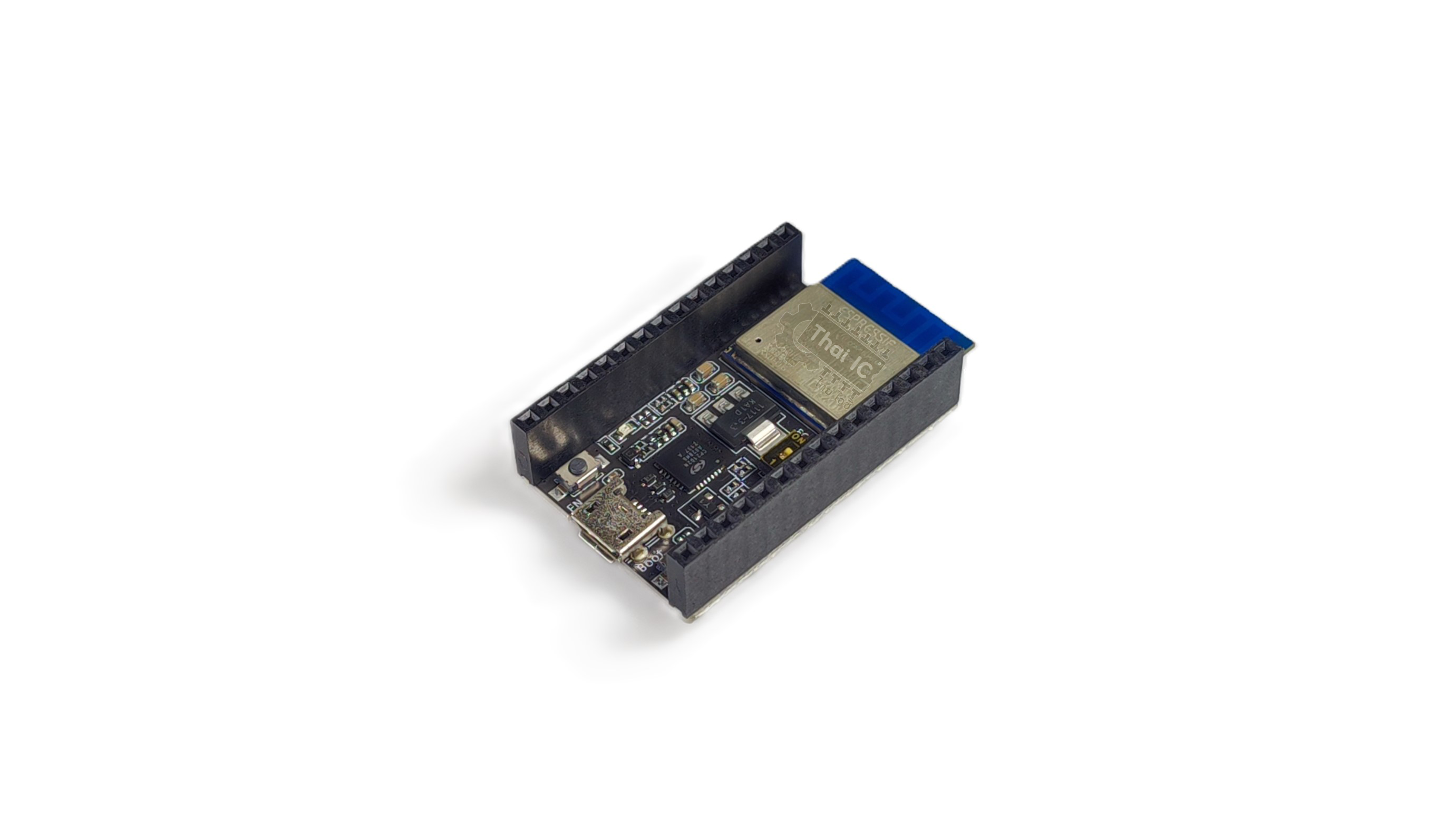

ESP8266 DevKitC 02D F

สินค้าประกอบด้วย:

ESP8266 DevKitC 02D F  จำนวน 1 ชิ้น

•  RF CERTIFICATION: SRRC, FCC, CE (RED), IC, NCC, KCC, TELEC (MIC)
•  Green certification: RoHS, REACH
•  Wi-Fi protocols: 802.11 b/g/n.
•  Frequency range: 2.4 GHz ~ 2.5 GHz (2400 MHz ~ 2483.5 MHz)
•  Peripheral interface: UART/HSPI/I2C/I2S/IR remote control, GPIO/PWM
•  Operating voltage: 2.7 V ~ 3.6 V.
•  Operating current: Average: 80 mA
•  Minimum current supplied by the power supply: 500 mA
•  Operating temperature range: -40°C ~ 85°C.
•  Wi-Fi mode: Station/SoftAP/SoftAP + Station
•  Security: WPA/WPA2
•  ENCRYPTION: WEP/TKIP/AES
•  Firmware upgrade: UART download/OTA (over network)/download and write firmware via host
•  Software development: Supports cloud server development/SDK for own firmware development
•  Network protocols: IPv4, TCP/UDP/HTTP/FTP
•  User configuration: AT command set, cloud server, Android/iOS app
